200G 400G 800G Transceivers

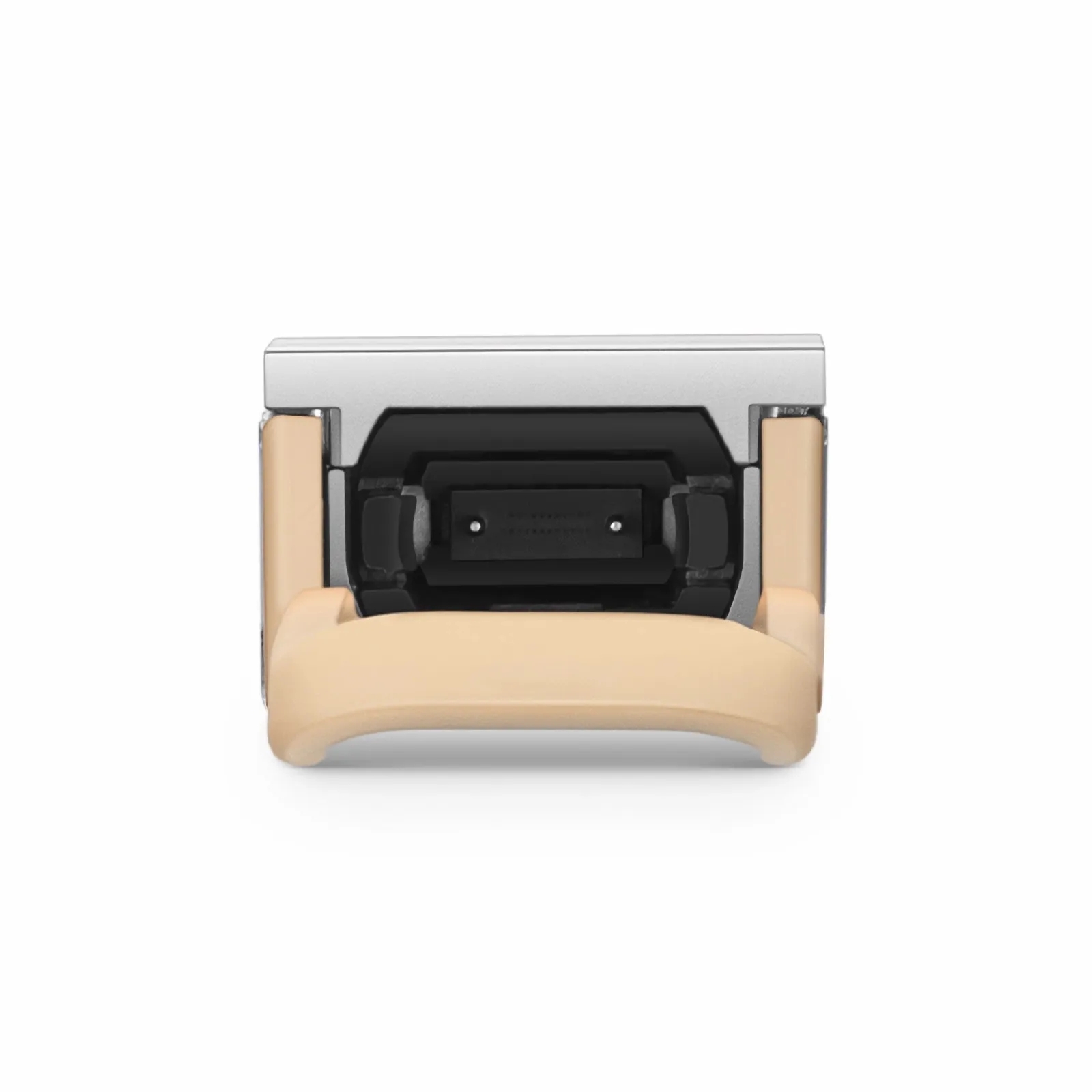

200GBASE SR4 QSFP-DD 8 x 25G NRZ 850nm 100m MPO-24/UPC MMF Transceiver Module


The 2X100-SR4-S Compatible QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24/UPC connectors.

This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.


DatasheetInquiry

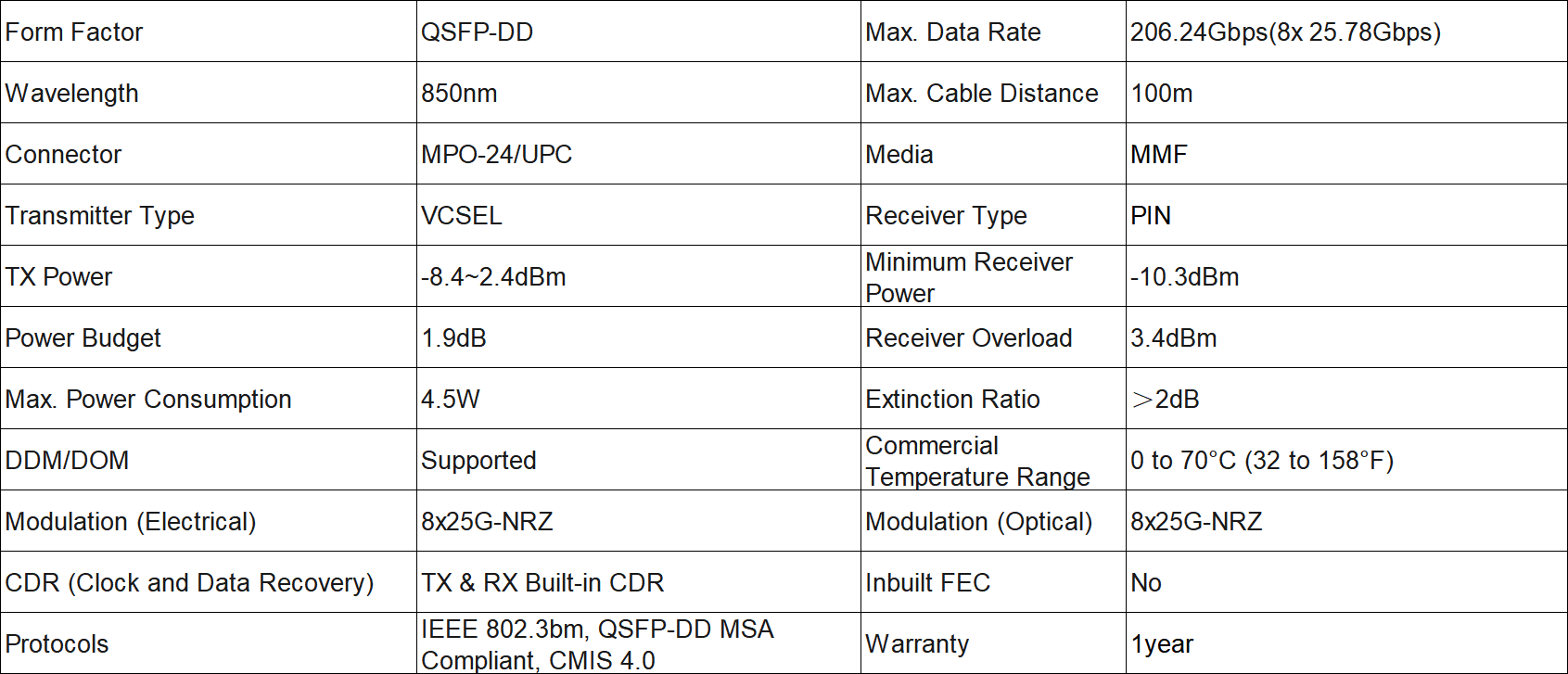

Specifications


Product Highlights

  • Built-in Macom Chip, Max. Power Consumption 4.5W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable QSFP-DD Form Factor
  • High-speed Electrical Compliant to IEEE 802.3bs
  • Compliant with QSFP-DD MSA CMIS V4.0
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Class 1 FDA Laser Safety
