Description

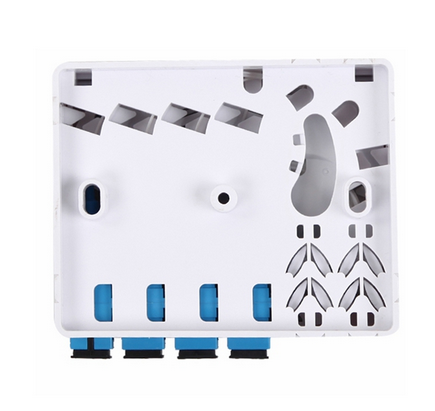

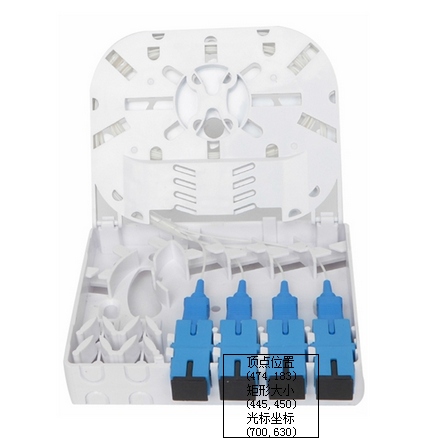

FRB-4B fiber rosette box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
Features
Specification
|
Application |
3.0x2.0mm Drop Cable or Indoor Cable |
|
Fiber Cladding Diameter |
125um(G652D&G657A) |
|
Fiber Diameter |
250um&900um |
|
Fiber Type |
Single Mode(SM) & Multi Mode(MM) |
|
Tensile Strength |
>50N |
|
Connecting Adaptor |
SC & LC |
|
Insertion Loss |
<0.2dB |
|
Return Loss |
>50dB(UPC), >60dB(APC) |
|
Bending Radius(mm) |
> 15 |
|
Operation Temperature |
-40~60 (°C) |
|
Storage Temperature |
-40~85 (°C) |
Configuration
|
Fiber Rosette FRB-4B Parameter |
||||||
|
Material |
Size |
Max Capacity |
Mounting Method |
Weight |
Color |
|
|
PC+ABS |
AxBxC(mm) |
SC |
LC |
Wall Mounting |
78g |
White |
|
100x80x28 |
4 Ports |
8 Ports |
||||
Standard Accessories
Installation nuts and bolts,protection sleeves.
